Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate

Brand Name : Shenghong

Model Number : SHQ-10

Certification : BV, SGS, ISO

Place of Origin : Zhengzhou, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T,D/A,Western Union

Supply Ability : 60 Sets per month

Delivery Time : 15 working days

Packaging Details : customer demand, usually in container

Product name : Organic fertilizer granulator

Warranty : 12 month

Application : Compost waste

Condition : New

Voltage : 380V, 50hz

Machine type : Granulator,Organic Fertilizer Granulator

Product type : Granulator

Type : Disc Granulator

Granules Size : 4.0 mm

Model : SHQ-10

Granule Diameter : 3-5mm

Forming Rate : ＞98%

Power : 2.2 kW

Contact Now

Pan Granulator Disc Type Granulator
Our disc granulator (also known as ball plate) is designed for efficient production of organic fertilizers, bentonite, and cat litter. Featuring a complete circular arc structure, it achieves granulation rates exceeding 93% with three discharge ports for convenient intermittent production.
Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate
Key Advantages
  • High efficiency with granulation rates over 93%
  • Three discharge ports for easy intermittent production
  • Flexible belt drive for smooth startup and extended equipment life
  • Reinforced bottom with radiation steel plates for durability
  • Solid base design requiring no anchor bolts
  • High-frequency quenched main gear for extended service life
  • High-strength glass fiber lining for corrosion resistance
Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate
Working Principle
The disc revolves at a specific angle to the horizontal plane. Mixed fertilizer powder rises with the revolving disc due to friction while simultaneously falling under gravity. Centrifugal force swings the material toward the disc edge. With water spraying as a binding agent, the powder rolls in a specific trace under these three forces, gradually forming into required sizes before overflowing from the disc edge.
Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate
Technical Specifications
Model Disc Diameter (mm) Edge Height (mm) Rotation Speed (r/min) Motor Power (kw) Capacity (t/h) Dimensions (mm)
SHQ-80800200251.50.1-0.2900×1100×1000
SHQ-101000250212.20.3-0.51400×1200×1400
SHQ-1515002501730.5-0.81750×1620×2000
SHQ-182000300175.50.6-12000×1980×2100
SHQ-20250035013.67.51-1.52200×2800×2700
SHQ-25250035013.67.51-1.52200×2800×2700
SHQ-28280040013.6111.8-33100×2350×3060
SHQ-30300045011113-4.53400×2500×3165
SHQ-32320045010153.5-53500×2600×3350
SHQ-36360045010225-74000×2990×3460
SHQ-454500600123013-185030×3750×4300

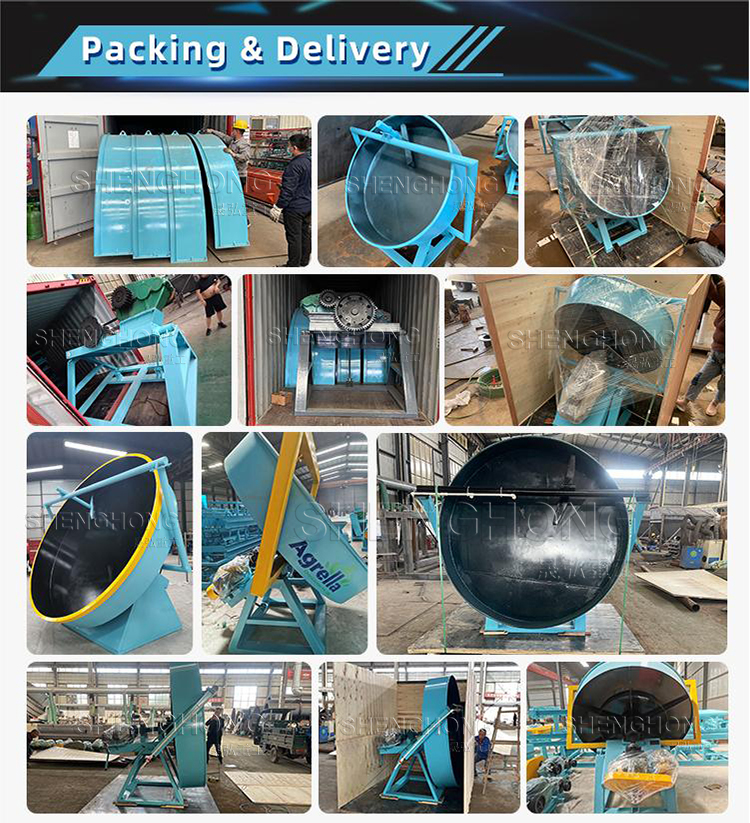

Packaging & Shipping
Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate
About Shenghong Machinery
Shenghong Machinery has earned numerous honors through outstanding products and advanced technology. We consider product quality as our lifeblood and customers as our priority. We implement strict quality control for every procedure, product, and customer, serving each client with dedication and sincerity.
Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate Disc Granulator Pan Granulator for Organic Fertilizer with 3-5mm Granules 380V Voltage and ＞98% Forming Rate
Frequently Asked Questions
What is the brand name of this fertilizer production line?
The brand name is Shenghong Heavy Industry.
What is the model number of this fertilizer production line?
The model number is SH-.
Where is this fertilizer production line made?
This fertilizer production line is made in Henan, China.
What certifications does this fertilizer production line have?
It is certified with ISO9001.
What is the minimum order quantity?
The minimum order quantity is 1.
What is the price of this fertilizer production line?
The price is negotiable.
What are the packaging details?
Packaging is based on customer demand, usually in containers.
What is the delivery time?
Delivery time is 15 days.
What are the payment terms?
Payment terms are L/C and T/T.
What is the supply ability?
Supply ability is 80 sets per month.
